Type3 & T34 ‘61 - ‘69 Premium Complete Air Suspension System

  • Sale
  • Regular price £2,550.00


The EvaResto Premium Type 3 Complete Air Suspension kit. Designed to give you everything you need for full ground laying Air Suspension, with unmatched quality and value for money.

To fit 1961 - 1969 Type 3 Fastback, Notchback, Squareback & Type 34 Razoredge Karmann ghia with Swing Axle Type rear suspension.

This kit contains our Innovative Type 1 conversion beam, so must be used with the necessary Type 1 parts required for installation. Parts needed are as follows: Trailing arms, Spindles, brake kit (in most cases, your factory fitted Type 3 calipers can be re-used) and hardware. We can supply these if wanted, to make a full conversion package.

Air Ride for Classic Aircooled cars has always been a tricky and over-complicated seeming deal. On one hand you have the proven kits out there that have been circulating for years that require welding and fabrication work, plus body removal to properly fit... And then on the other, kits that claim full Bolt-on, but still require things like engine & gearbox removal, or bodywork cutting/clearancing to fit.... And don’t yield particularly great results once in place - feeling more like a compromise than a proper performing solution. We here at EvaResto have worked hard to revolutionise Air Suspension systems for Classic Type 1/Beetle models, and reset the standard of how kits should fit, feel and perform in the real world.

Years of experience fitting and servicing almost every type of Air Suspension system possible on Aircooled Type1 cars has led up to this point. Our own design, cleverly engineered, Bolt On, Zero Compromise kits are here. Designed to lay your car out like you’ve always dreamed, and make it drive a way you thought not possible. Engineered and produced by the obsessed, for the obsessed!

This Kit contains all of the Chassis parts needed to fully independently Air-Equip your car and remove the torsion bar/spring assembly and majority of the factory suspension components in full. A management package of your choice must be used in conjunction with this system. These can be found under the “Air Suspension Management Packages” category. We have a range of choices for different budgets from Airlift Performance.

A huge upgrade over a statically dropped setup, this full kit is designed from scratch to give killer lows, awesome range, great performance and a straightforward no-body-mods fit.
From fully dropped, to near stock height, our kits give around 5-6” of useable range. Plenty for tackling rough roads, bumpy fields, ferry/eurotunnel access (we all know someone who’s had a hard time with a lowered car here!) or steep driveways. Choose from a moderately stanced useable drive height, to half an inch of ground clearance (at your own risk!) or high enough to never contact the floor with your pristinely restored floorpan... whatever your personal or driving style, let Air Ride suit you perfectly.

So, what makes up our full ‘Premium’ system? Rather than offering you a ‘full air suspension kit’ that needs recommended upgrades/extra parts/modifications to get you actually low, our Standard Premium kit comes with everything you need (with the exception of drop spindles - I’ll explain later!) to get your car sitting where you really want. Both the front and rear kits are designed to allow full layed-out lows with no pre-mature ‘bottoming-out’ of parts like Ball Joints, spring plates, shock absorbers or air bags. As a result, the EvaResto Premium air ride kits provide the best possible out-of-the-box lows, and boast easier lifting and lower running pressures than any other kit available from any other manufacturer.

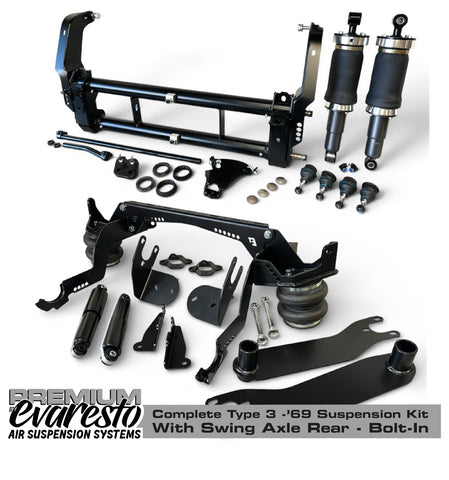

The front end Premium kit consists of: Custom built-for-specification T1 Conversion Raise Tube/Caster corrected Axle Beam in 2" or 4" Narrowed (please specify when ordering), Torsion bar delete Freeroll Rods, our excellent super powerful AirSleeve Shocks, Steering extender/quick steer kit, Correct length custom steering rods, Adjustable steering stop/steering box clamp, OE Quality long travel ball Joints, Beam grease seals set, 1/4” PTC fittings, Comprehensive installation guide and complete fastener kit.

And the rear end Type 3 Premium kit: Full Chassis hardware kit including top mount halves, brace bar, rose jointed stiffener bars, lower air bag brackets, FreeRoll extended drop ‘spring’ plates with OE size stubs (re-use your factory rubbers or spec new ones from our shop). Airlift Performance Twin-Bellow air bags & 1/4" PTC fittings, gas-charged shock absorbers, new Kunifer hard brake lines & axle tube clamps, Comprehensive installation guide and complete fastener kit.

Now available as an upgrade to the standard supplied Zenith AirSleeve front shocks and sport gas-charged rears (pictured) are EvaResto/Spax ‘Performance+’ Package shocks. The same lift pressure and ride quality as the regular supplied shocks, only with 30-click stiffness/rebound adjustment all round. Enabling you to precisely dial in the suspension feel and response. An ideal choice for the performance minded classic vw builder, and a perfect accompaniment to a high capacity engine setup! Choose the upgrade from the 'Air Suspension Hardware/Chassis Parts' category, and purchase it alongside this kit for the upgrade to take effect.

Low profile tyres are recommended for the front axle to allow for best results. A 145/65 r15 is our usual go-to size for the front end, and reacts well when used with near stock tyre pressures.
Requires 2.5" drop spindles to give proper lows. These can be added in the drop-down box menu, as most people already have them on their cars before fitting air, they're not specified in the 'stock' kit :).

Available from us are 2x Shock Tower Height' options for Type 3 front kit.

*No Body Mods Towers - These are as it states, a no body cutting required solution. A great option for those who's classic German steel is sacred! This Setup will give a full dropped height, like the other ‘full length’ tower option, if the supplied weld-on lower shock mount relocators are used. If not, expect a reduction in drop of 1/2-1”.

*Full Length Towers (Tub Required) - These are the same length towers which we fit to our Beetle Air Ride beams, and require a slight cut into the inner wing of the car for fitment. If you're tubbing your Type 3 anyway (like we always do for anything over a 15x4.5” wheel and super skinny tyre), then it's no problem. Full drop and lift, with no weld-on lower relocator required.

If you're after the best Type3 Air suspension solution available - look no further!

Supplied coated in a smart Satin Black Powdercoat as standard.

Designed and hand built by us in the UK.

Our stock levels are constantly changing - so for an up-to-date lead time please message us beforehand.
